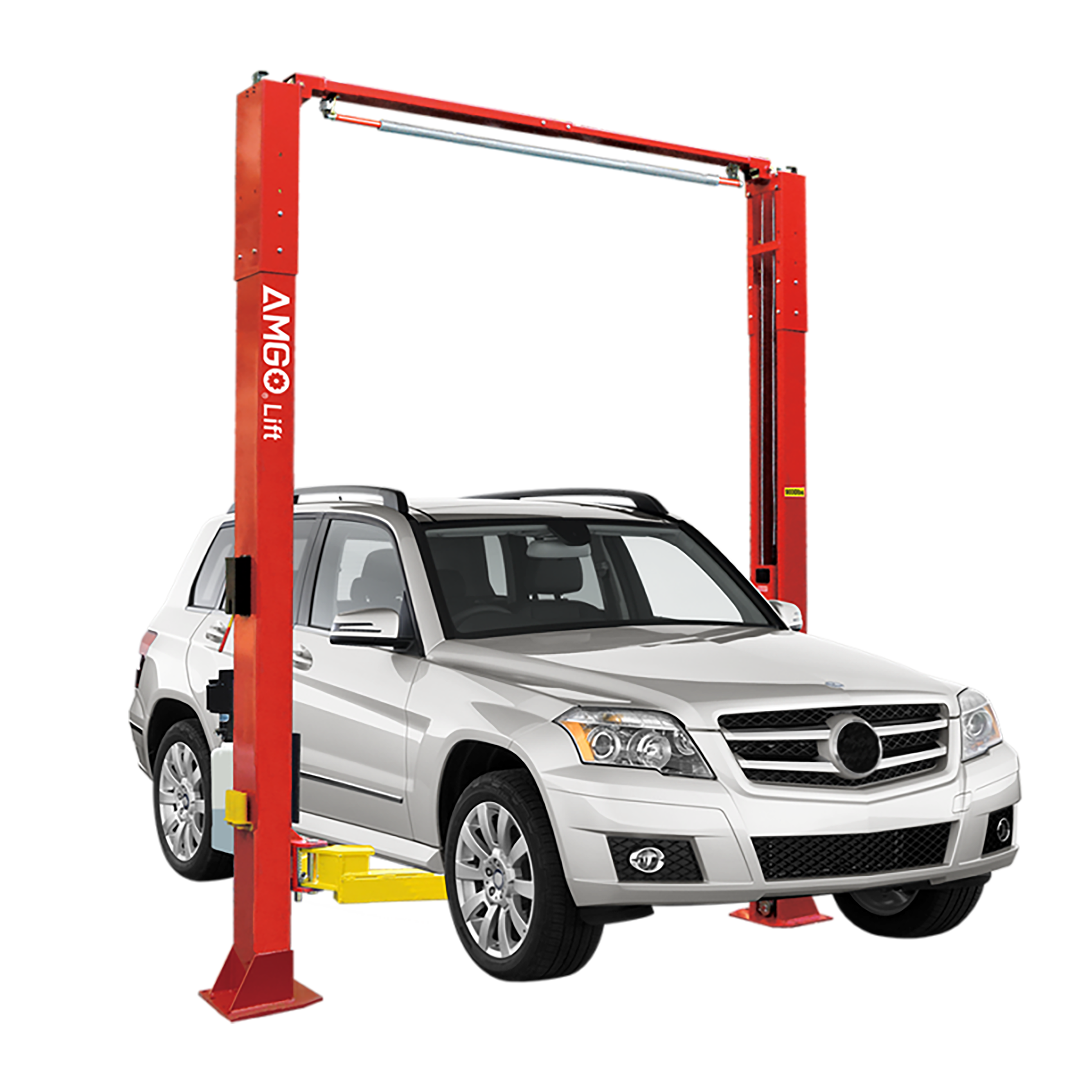

SSUSA OHX-10H

SSUSA OHX-10H

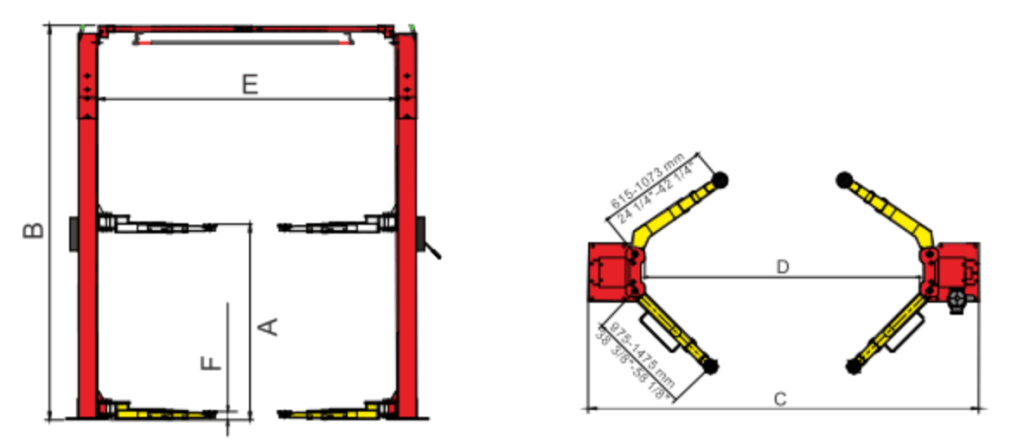

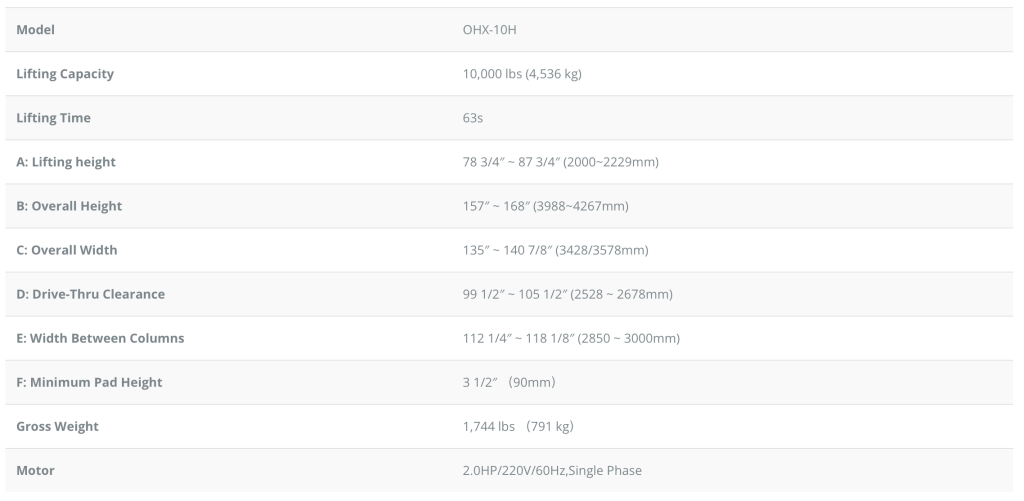

The OHX-10H is the extremely high lifting model with lifting height up to 78 3/4″ ~ 87 3/4″. Height & Width adjustment. The lift is designed with super asymmetric arms and share many same features as model OHX-10.

Click to download Product Brochure

Click to download Product Manual

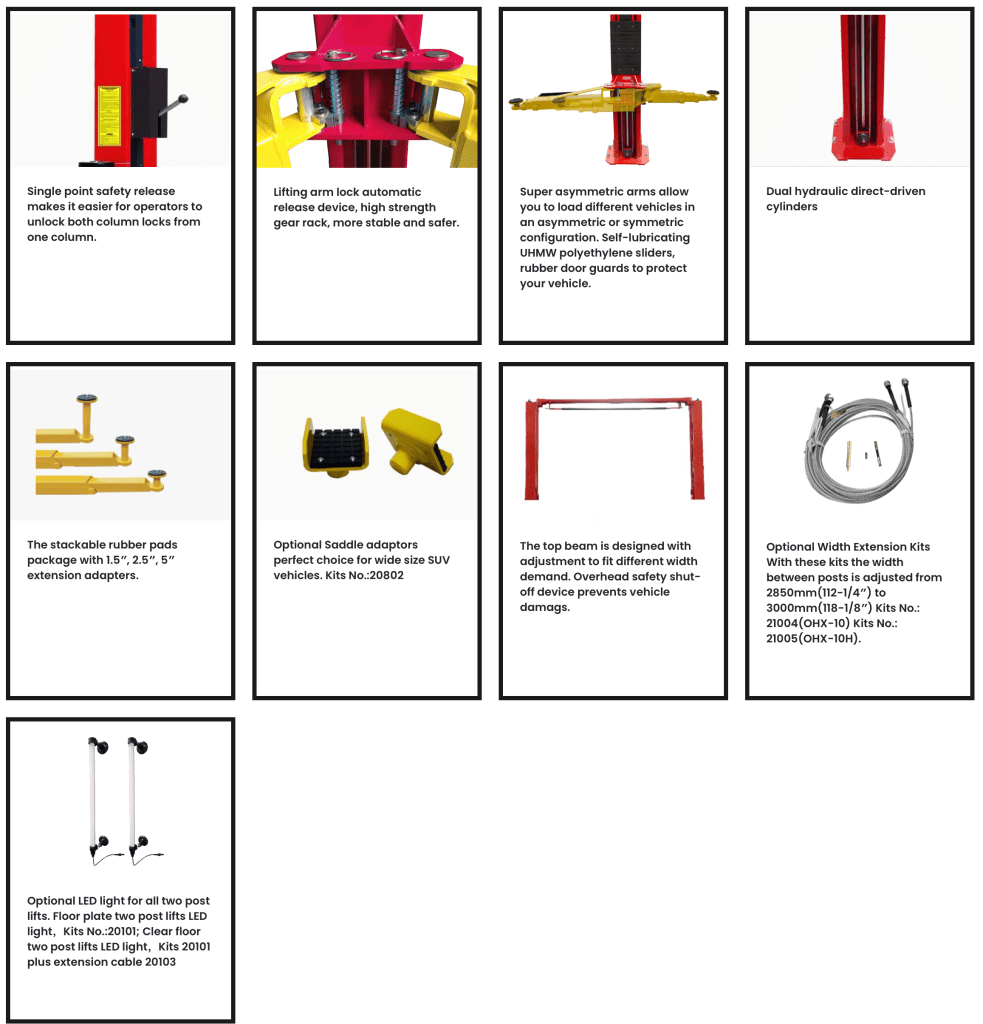

FEATURES

• Dual hydraulic cylinders, designed and made on high standard, high quality seals.

• Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.

• 3/8″ aircraft quality cable is used for synchronization.

• Self lubricating UHMW Polyethylene sliders and bronze bushings.

• Single-point safety release, and dual safety design.

• Clear floor design, provides unobstructed floor use.

• Overhead safety stop device.

• Automatic arm restraints keep the arms locked in their proper positions.

• Adjustable heights for OHX-10H.

• Stackable adapters 1.5″, 2.5″, 5″ as standard.

• The height and width are adjustable.

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
