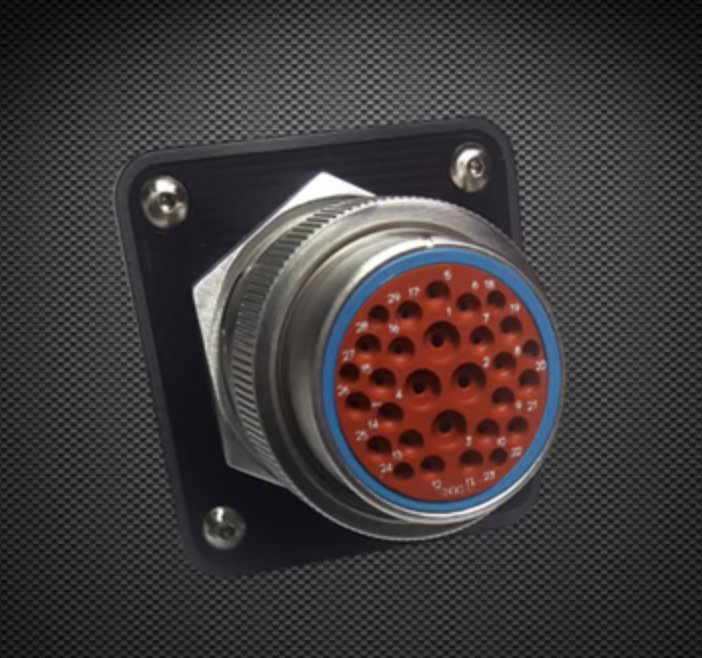

THIS SINGLE CONNECTOR BULKHEAD COMES WITH 1 ALUMINUM SHELL SIZE 24 DEUTSCH HD30 SERIES CONNECTOR (BOTH SIDES OF THE CONNECTOR, PLUG AND RECEPTACAL) + ALL THE CONTACT TERMINALS (PINS AND SOCKETS) TO POPULATE THE CONNECTOR. BOOTS SOLD SEPARATELY, THE BOOT STYLE WILL BE SPECIFIC TO THE BUILD. THIS IS A GREAT WAY TO PASS WIRES THROUGH A FIREWALL, AND EASILY DISCONNECT THE HARNESS WITH JUST A QUARTER TURN. MANY HAVE FOUND THIS A GREAT WAY TO COVER UNUSED AC OR HEATER HOSE HOLES ON THE FIREWALL.
*2 shell sizes available- shell size 18 comes in 8,20,21 pin options and shell size 24 comes in 16,29,35,47 options
NOTE TO FIRST TIME USERS OF THESE TYPE OF CONNECTORS; FOLLOW THIS INSTRUCTIONS CAREFULLY AND YOU WILL BE SUCCESSFUL:
- USE OF THE CORRECT CRIMPING TOOL IS ESSENTIAL! MUST USE CRIMPERS SIMILAR TO THESEÂ –CLICK HERE-Â Â
- BORROW ONE FROM A FRIEND IF YOU CAN- FAILURE TO DO SO WILL RESULT IN PINS STUCK IN THE CONNECTOR- THIS IS THE ONLY CRIMPER REQUIRED FOR THE STANDARD CONNECTORS THAT WE SELL
- FOLLOW CRIMPINGÂ PROCEDURES FORÂ SOLID CONTACTSÂ -CLICK HERE-Â
- YOU CAN FIND INSTRUCTIONS FOR ASSEMBLING THE DEUTSCH CONNECTORSÂ CLICK HERE
- REQUIRES A CORRECT REMOVAL TOOL TO REMOVE THE TERMINALS FROM THE CONNECTOR, WE LIKE THIS ONE BUT THERE ARE MANY VERSIONS ON THE MARKET-Â CLICK HERE
- PINÂ REMOVAL INSTRUCTIONSÂ CLICK HERE
- USE THE PROVIDED TEMPLATE TO LOCATE THE BOLT HOLE LOCATIONS FOR THE BULKHEAD PLATE
