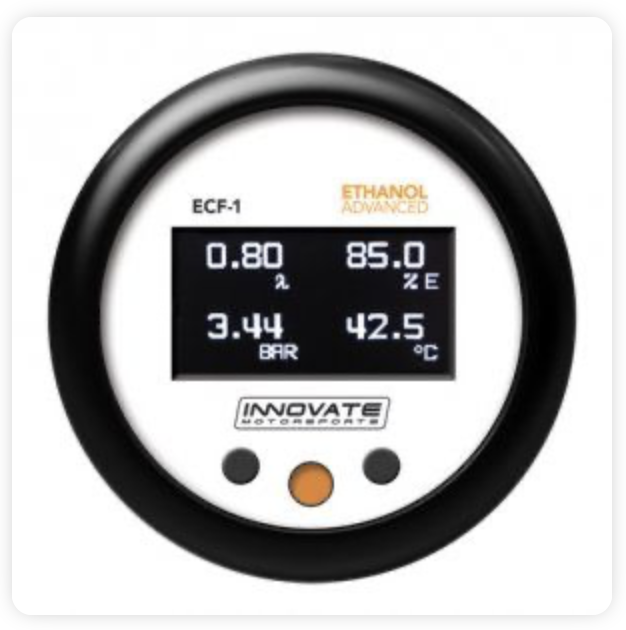

ECF-1: ETHANOL CONTENT %, FUEL PRESSURE/TEMP, & WIDEBAND AIR/FUEL RATIO GAUGE, COMPLETE

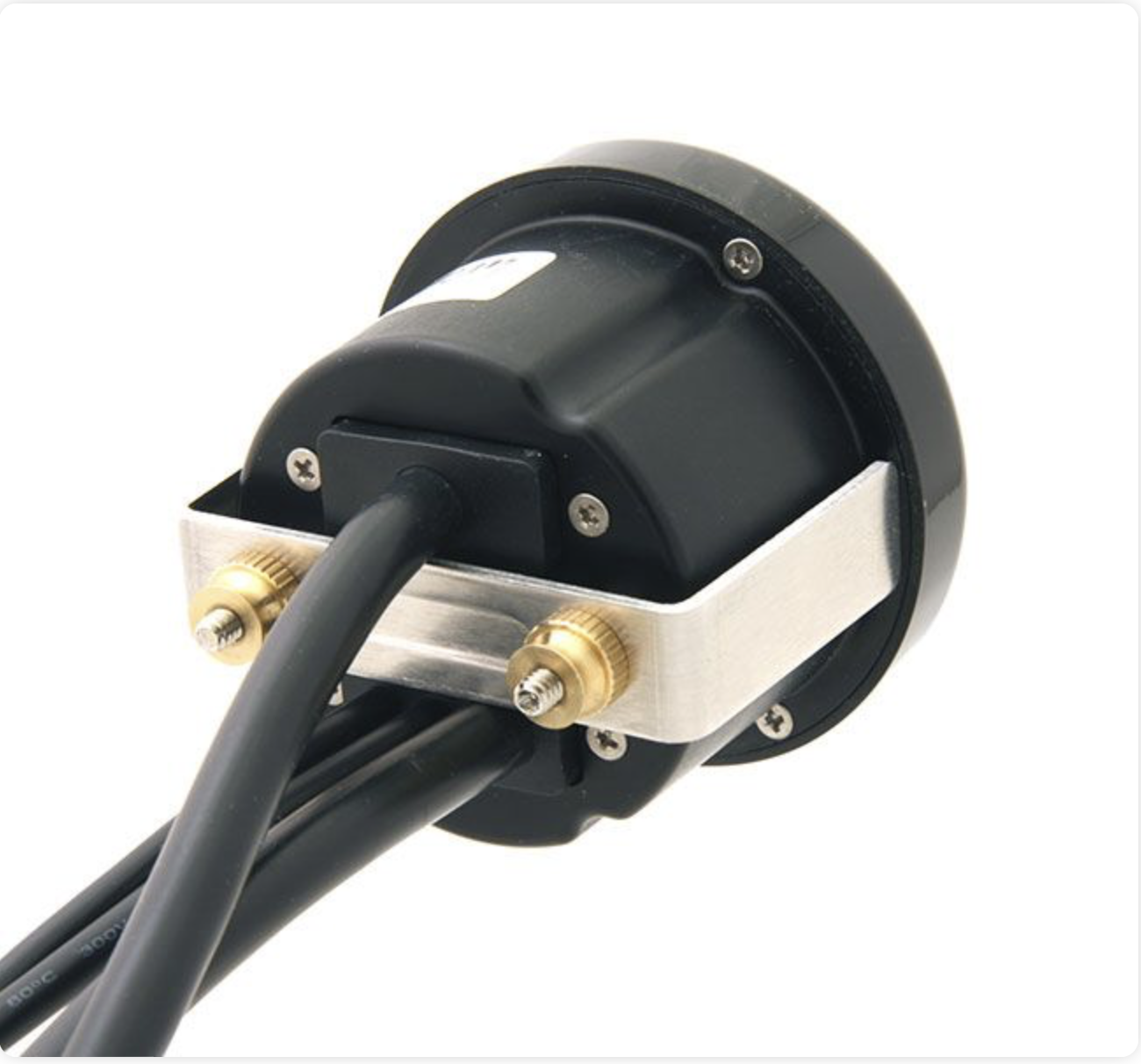

ECF-1: ETHANOL CONTENT %, FUEL PRESSURE/TEMP, & WIDEBAND AIR/FUEL RATIO GAUGE, COMPLETE - Image 2

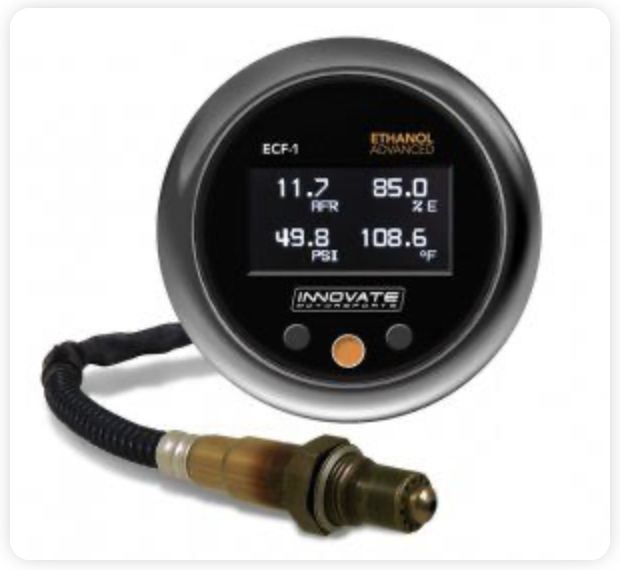

ECF-1: ETHANOL CONTENT %, FUEL PRESSURE/TEMP, & WIDEBAND AIR/FUEL RATIO GAUGE, COMPLETE - Image 3
ECF-1: ETHANOL CONTENT %, FUEL PRESSURE/TEMP, & WIDEBAND AIR/FUEL RATIO GAUGE, COMPLETE - Image 4
, , ,

ECF-1: ETHANOL CONTENT %, FUEL PRESSURE/TEMP, & WIDEBAND AIR/FUEL RATIO GAUGE, COMPLETE

$451.99

KEY FEATURES
  • 0-145 PSI[10BAR] Fuel Pressure Sensor
  • 100 pct. Digital Wideband Air/Fuel Ratio Technology
  • 4-Configurable Analog Outputs
  • 52mm [2-1/16 in.] Dia. Gauge w/Interchangeable Faceplate/Bezel
  • Bosch™ LSU 4.9 Wideband O2 sensor
  • Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
  • No PC Required For Configuration
  • OLED User Configurable Display; On Screen Error Reporting
  • Patented DirectDigital™ Wideband Sensor Control
  • Warning Indicator LED For Low Fuel Pressure[User Programmable]
RANGE
  • 0 – 145 PSI (10 BAR) / 0 – 100% / -40 – 257 °F (-40 – 125°C) / 7.4:1 – 22.4:1 AFR (0.5 – 1.5 LAMBDA)
SKU: 39030 Categories: , , , Tag:

The Ethanol Advanced gauges combine Innovate Motorsports’ patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand! Includes Innovate MTS serial comms for use with MTS enabled devices to add additional logging channels for analysis with powerful LogWorks PC software.



KIT INCLUDES

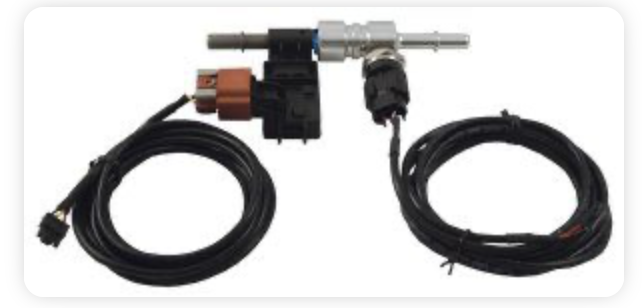

ECF-1 Gauge, Continental Ethanol Sensor, Fuel Pressure Sensor, Fuel Line Fitting (3/8″ M to 3/8″ F w/1/8″ NPT Side Port, Silver & Black Bezels, White & Black Faceplates, LSU 4.9 O2 Sensor, 8 Ft. Sensor Cable, 1″ Exhaust Bung, Program Cable, and Manual.
Weight 5 lbs
Dimensions 11 × 8 × 3 in

SPECIFICATION

KEY FEATURES
  • 0-145 PSI[10BAR] Fuel Pressure Sensor
  • 100 pct. Digital Wideband Air/Fuel Ratio Technology
  • 4-Configurable Analog Outputs
  • 52mm [2-1/16 in.] Dia. Gauge w/Interchangeable Faceplate/Bezel
  • Bosch™ LSU 4.9 Wideband O2 sensor
  • Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
  • No PC Required For Configuration
  • OLED User Configurable Display; On Screen Error Reporting
  • Patented DirectDigital™ Wideband Sensor Control
  • Warning Indicator LED For Low Fuel Pressure[User Programmable]
RANGE
  • 0 – 145 PSI (10 BAR) / 0 – 100% / -40 – 257 °F (-40 – 125°C) / 7.4:1 – 22.4:1 AFR (0.5 – 1.5 LAMBDA

CALIFORNIA PROP 65

What is California Prop 65?

In 1986, California voters approved an initiative to address their growing concerns about exposure to toxic chemicals. That initiative became the Safe Drinking Water and Toxic Enforcement Act of 1986, better known by  its name of Proposition 65.

Recent changes to the law have updated the product labeling requirements for product sold in California. Warning labels must accompany any product that contains or may contain any of the chemicals appearing on the list administered by California’s Office of Environmental Health Hazard Assessment (OEHHA).

What does this mean for the products in this catalog?

Proposition 65 imposes strict penalties for noncompliance and the list of chemicals is so expansive that it is cost-prohibitive for a small company to go through the individual testing process for each product that is offered. As a result, Detroit Speed & Engineering is taking a conservative approach and labeling all products with the warning as required by Proposition 65. This does not mean that we believe our products are harmful when used as designed.

Detroit Speed is committed to the safety and protection of our customers and will apply warning labels either on the product or the product packaging, of all products currently offered for sale. Detroit Speed products may contain one or more of the listed chemicals in a smaller amount than Proposition 65’s concern, or not at all, however we have chosen to issue this warning on all products as an act of extreme caution and because our customers have the right to know.

Additional Resources
For more information about Proposition 65 visit:
https://oehha.ca.gov/proposition-65/general-info/proposition-65-plain-language

INSTALLATION GUIDE

INSTALLATION AND SETUP

Installation of the ECF-1: Ethanol Content %, FUEL Pressure/Temp, & Wideband Air/Fuel Ratio Gauge, Complete is relatively simple. Complete documentation is supplied, and the support pages, application notes and tuner resources can also speed you on your way to effective tuning. Innovate also has a great network of local dealers, tuners, race shops, and dyno shops that can assist you in choosing, installing and getting the most out of your Innovate products. Click here to find a dealer near you.

Download Manual
